类的布局——方法列表（1）

发表于 | 分类于 |
字数统计: 1.7k 字 | 阅读时长 ≈ 8 分钟

对于OC的实例方法，用法是先实例化对象，再用实例对象调用方法：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
// ObjectA.h
@interface ObjectA : NSObject
@property(nonatomic,assign,readonly)BOOL b;
- (void)funcA;
- (void)funcB:(NSString *)str;
@end

// ObjectA.m
#import "ObjectA.h"
@implementation ObjectA
- (void)funcA {
    NSLog(@"方法A");
}
- (void)funcB:(NSString *)str {
    NSLog(@"方法B：%@", str);
}
@end

  // 调用实例方法
  ObjectA *aObj = [[ObjectA alloc] init];
  [aObj funcA];

和成员变量的使用方式一样，都是先初始化对象，再使用。这就容易让人产生一个误区：实例方法和成员变量一样，每个对象独一份，在对象初始化时存储在堆区。

事实上，实例方法和成员变量有着本质的区别，成员变量是在对象实例化之后，存储在内存的堆区（即对象所在的地址）；而实例方法作为可执行部分，编译之后存储在代码段，实例方法的地址（IMP）、方法名等信息则被存储在类对象中。

类对象的定义：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
struct class_rw_ext_t {
    DECLARE_AUTHED_PTR_TEMPLATE(class_ro_t)
    class_ro_t_authed_ptr<const class_ro_t> ro;
    method_array_t methods;
    property_array_t properties;
    protocol_array_t protocols;
    const char *demangledName;
    uint32_t version;
};

struct class_rw_t {
    // Be warned that Symbolication knows the layout of this structure.
    uint32_t flags;
    uint16_t witness;
    explicit_atomic<uintptr_t> ro_or_rw_ext;

  private:
    using ro_or_rw_ext_t = objc::PointerUnion<const class_ro_t, class_rw_ext_t, PTRAUTH_STR("class_ro_t"), PTRAUTH_STR("class_rw_ext_t")>;
};
struct class_data_bits_t {
    // Values are the FAST_ flags above.
    uintptr_t bits;
};

struct objc_class : objc_object {
    // Class ISA;			// 继承自 struct objc_object
    Class superclass;
    cache_t cache;             // formerly cache pointer and vtable
    class_data_bits_t bits;
	  class_rw_t *data() const {
  	     return bits.data();
    }
};

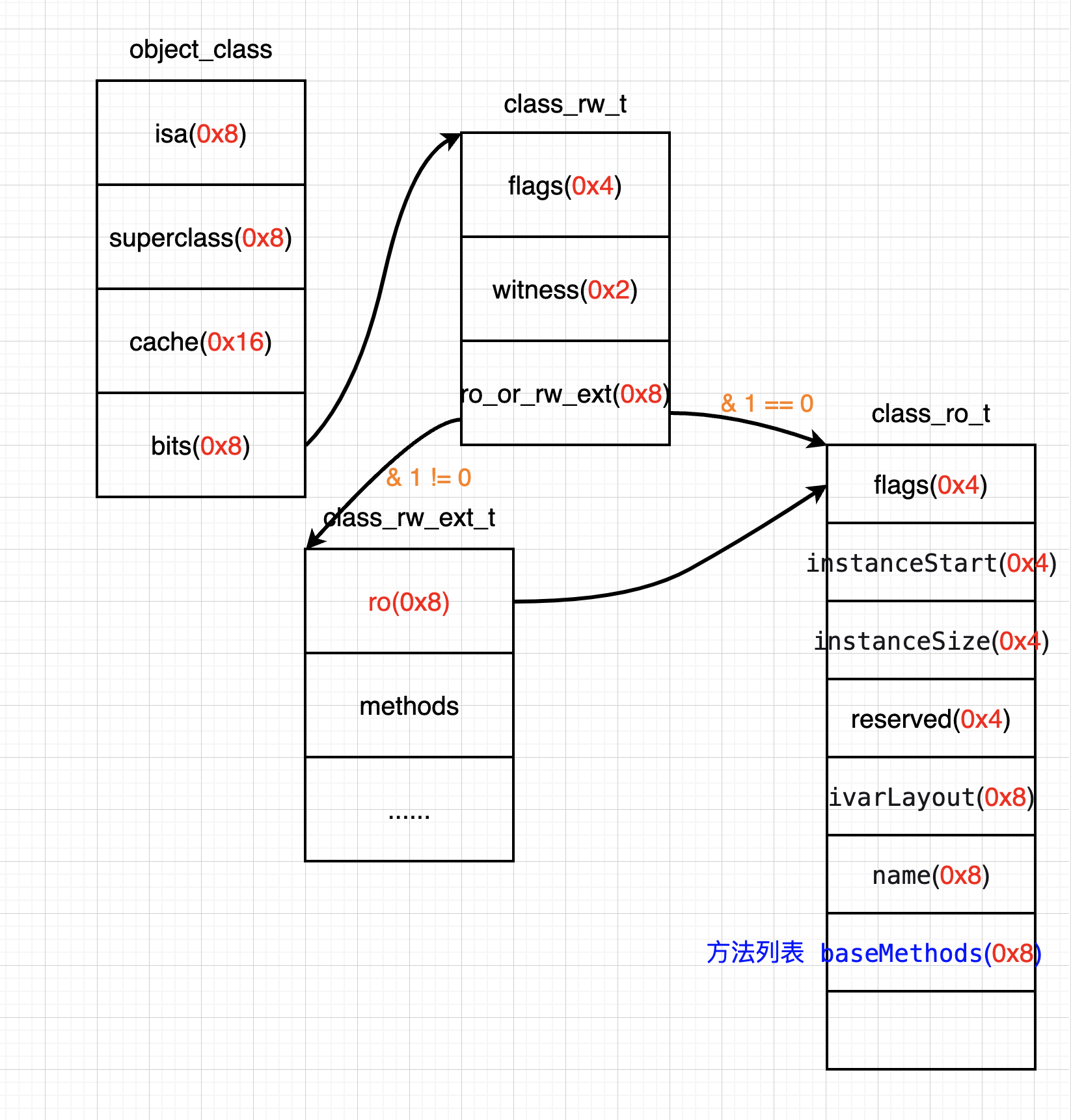

用一个图大概描述一下其内存布局：

用lldb大致验证一下：

初始化对象：

1
2
ObjectA *aObj = [[ObjectA alloc] init];
 NSLog(@"=====分割线=====");		// 此处下断点

获取对象地址：

1
2
(lldb) po aObj
<ObjectA: 0x282dccdd0>

获取isa指针：

1
2
3
4
(lldb) x/1gx 0x282dccdd0
0x282dccdd0: 0x01000001001f14a9			// 0x01000001001f14a9 为优化后的isa指针，要获取真实的isa指针，需进一步处理
(lldb) p/x 0x01000001001f14a9 & 0x0000000ffffffff8ULL
(unsigned long long) $1 = 0x00000001001f14a8		// 0x00000001001f14a8 为真实的isa指针

获取bits：

1
2
3
4
(lldb) x/5gx 0x00000001001f14a8
0x1001f14a8: 0x00000001001f1480 0x000000020afa07d8
0x1001f14b8: 0x0003000283a88440 0x8018000100000000
0x1001f14c8: 0x8000000282fea4e4					// 0x8000000282fea4e4 即为bits的值

从bits值中获取class_rw_t结构体：

1
2
(lldb) p/x 0x8000000282fea4e4 & 0x0f00007ffffffff8UL
(unsigned long) $2 = 0x0000000282fea4e0			// struct class_rw_t指针

获取class_ro_t结构体：

1
2
3
4
(lldb) x/2gx 0x0000000282fea4e0
0x282fea4e0: 0x0000000080080006 0x00000001001f02c8		// 0x00000001001f02c8 为ro_or_rw_ext联合指针
(lldb) p/x 0x00000001001f02c8 & 0x1
(long) $3 = 0x0000000000000000							// ro_or_rw_ext & 0x1 == 0 ,则 ro_or_rw_ex 的值即为class_ro_t指针

获取baseMethods

1
2
3
4
(lldb) x/5gx 0x00000001001f02c8
0x1001f02c8: 0x0000000800000080 0x0000000000000009
0x1001f02d8: 0x0000000000000000 0x00000001001ef3d3
0x1001f02e8: 0x00000001001f0238						// 该指针即为baseMethods

查看baseMethods的内容：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
// baseMethods为struct method_list_t指针。
// struct method_list_t 结构如下：

template <typename Element, typename List, uint32_t FlagMask, typename PointerModifier = PointerModifierNop>
struct entsize_list_tt {
    uint32_t entsizeAndFlags;
    uint32_t count;
  uint32_t entsize() const {
        return entsizeAndFlags & ~FlagMask;
    }
    uint32_t flags() const {
        return entsizeAndFlags & FlagMask;
    }

    ALWAYS_INLINE
    Element& getOrEnd(uint32_t i) const {
        ASSERT(i <= count);
        uint32_t iBytes;
        if (os_mul_overflow(i, entsize(), &iBytes))
            _objc_fatal("entsize_list_tt overflow: index %" PRIu32 " in list %p with entsize %" PRIu32,
                        i, this, entsize());
        return *PointerModifier::modify(*(List *)this, (Element *)((uint8_t *)this + sizeof(*this) + iBytes));
    }

    Element& get(uint32_t i) const {
        ASSERT(i < count);
        return getOrEnd(i);
    }
  ...
};

struct method_list_t : entsize_list_tt<method_t, method_list_t, 0xffff0003, method_t::pointer_modifier> {
  ...
};

乍一看，似乎这里并没有存储任何和方法列表相关的信息，但是细看结构体模版entsize_list_tt的getOrEnd实现就会发现，该模版在结构体内部维护了一个Element类型的数组，其实际结构可以理解为：

1
2
3
4
5
struct entsize_list_tt {
    uint32_t entsizeAndFlags;
    uint32_t count;
    Element elements[0];
};

从上面可以看出，该模版作为method_list_t的实现，Element的类型为：method_t。

1
2
3
4
5
struct method_t {
	SEL name;
  const char *types;
  MethodListIMP imp;
};

到这里，baseMethods的内容便呼之欲出了：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
(lldb) x/15gx 0x00000001001f0238			// 以指针的形式读取15条baseMethods的内容
0x1001f0238: 0x000000030000001b 0x00000001001ef035		//0x000000030000001b 为 entsizeAndFlags 和 count 的值
0x1001f0248: 0x00000001001ef444 0x00000001001edd24
0x1001f0258: 0x00000001001ef03b 0x00000001001ef44c
0x1001f0268: 0x00000001001edd50 0x00000001b04f22e9
0x1001f0278: 0x00000001001ef457 0x00000001001eddb4
0x1001f0288: 0x0000000100000020 0x00000001001f1420
0x1001f0298: 0x00000001001ee619 0x00000001001ef45f
0x1001f02a8: 0x0000000100000000
(lldb) p (SEL)0x00000001001ef035			// 读取第1个method_t的name
(SEL) $11 = "funcA"
(lldb) p (char *)0x00000001001ef444		// 读取第1个method_t的types
(char *) $12 = 0x00000001001ef444 "v16@0:8"
(lldb) dis -a 0x00000001001edd24			// 通过反编译指令验证第1个method_t的imp
ObjectDemo`-[ObjectA funcA]:
    0x1001edd24 <+0>:  sub    sp, sp, #0x20
    0x1001edd28 <+4>:  stp    x29, x30, [sp, #0x10]
    0x1001edd2c <+8>:  add    x29, sp, #0x10
    0x1001edd30 <+12>: str    x0, [sp, #0x8]
    0x1001edd34 <+16>: str    x1, [sp]
    0x1001edd38 <+20>: adrp   x0, 3
    0x1001edd3c <+24>: add    x0, x0, #0x90             ; @
    0x1001edd40 <+28>: bl     0x1001ee3a8               ; symbol stub for: NSLog
    0x1001edd44 <+32>: ldp    x29, x30, [sp, #0x10]
    0x1001edd48 <+36>: add    sp, sp, #0x20
    0x1001edd4c <+40>: ret
(lldb) p (SEL)0x00000001001ef03b			// 读取第2个method_t的name
(SEL) $13 = "funcB:"
(lldb) p (char *)0x00000001001ef44c		// 读取第2个method_t的types
(char *) $14 = 0x00000001001ef44c "v24@0:8@16"
(lldb) dis -a 0x00000001001edd50			// 通过反编译指令验证第2个method_t的imp
ObjectDemo`-[ObjectA funcB:]:
    0x1001edd50 <+0>:  sub    sp, sp, #0x40
    0x1001edd54 <+4>:  stp    x29, x30, [sp, #0x30]
    0x1001edd58 <+8>:  add    x29, sp, #0x30
    0x1001edd5c <+12>: mov    x8, x1
    0x1001edd60 <+16>: mov    x1, x2
    0x1001edd64 <+20>: stur   x0, [x29, #-0x8]
    0x1001edd68 <+24>: stur   x8, [x29, #-0x10]
    0x1001edd6c <+28>: add    x0, sp, #0x18
    0x1001edd70 <+32>: str    x0, [sp, #0x8]
    0x1001edd74 <+36>: mov    x8, #0x0
    0x1001edd78 <+40>: str    x8, [sp, #0x10]
    0x1001edd7c <+44>: str    xzr, [sp, #0x18]
    0x1001edd80 <+48>: bl     0x1001ee42c               ; symbol stub for: objc_storeStrong
    0x1001edd84 <+52>: ldr    x8, [sp, #0x18]
    0x1001edd88 <+56>: mov    x9, sp
    0x1001edd8c <+60>: str    x8, [x9]
    0x1001edd90 <+64>: adrp   x0, 3
    0x1001edd94 <+68>: add    x0, x0, #0xb0             ; @
    0x1001edd98 <+72>: bl     0x1001ee3a8               ; symbol stub for: NSLog
    0x1001edd9c <+76>: ldr    x0, [sp, #0x8]
    0x1001edda0 <+80>: ldr    x1, [sp, #0x10]
    0x1001edda4 <+84>: bl     0x1001ee42c               ; symbol stub for: objc_storeStrong
    0x1001edda8 <+88>: ldp    x29, x30, [sp, #0x30]
    0x1001eddac <+92>: add    sp, sp, #0x40
    0x1001eddb0 <+96>: ret

用lldb将方法列表的存储位置过一遍后，整个过程清晰了很多，接下来再用代码走一遍：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
// 定义 ISA_MASK 用于获取isa指针
#if __arm64__
#if TARGET_OS_EXCLAVEKIT
#define ISA_MASK        0xfffffffffffffff8ULL
#elif __has_feature(ptrauth_calls) || TARGET_OS_SIMULATOR
#define ISA_MASK        0x007ffffffffffff8ULL
#else
#define ISA_MASK        0x0000000ffffffff8ULL
#endif
#endif

// 定义 FAST_DATA_MASK 用于获取class_rw_t
#if TARGET_OS_EXCLAVEKIT
#define FAST_DATA_MASK          0x0000001ffffffff8UL
#elif TARGET_OS_IPHONE && !TARGET_OS_SIMULATOR
#define FAST_DATA_MASK          0x0f00007ffffffff8UL
#else
#define FAST_DATA_MASK          0x0f007ffffffffff8UL
#endif

// 定义方法结构体
struct method_t {
    SEL sel;
    char *types;
    IMP imp;
};

// 定义方法列表结构体
struct method_list_t {
    uint32_t entsizeAndFlags;
    uint32_t count;
    struct method_t elements[0];
};

// 从实例对象中获取isa指针
BytePtr _isaForObject(NSObject *obj) {
    if (obj == nil) return NULL;
    struct _object {
        BytePtr isa;
    };
    struct _object *obj_ptr = (struct _object *)(__bridge void *)obj;
    return (BytePtr)((int64_t)obj_ptr->isa & ISA_MASK);
}

// 从isa指针中获取方法列表和方法数
void _methodsWithIsa(BytePtr isa, struct method_t **methods, uint32_t *count) {
    // 获取isa中的bits
    uintptr_t bits = *((uintptr_t *)(isa + 8/*isa*/ + 8/*superclass*/ + 16/*cache*/));

    // 获取 class_rw_t
    uintptr_t class_rw_t = bits & FAST_DATA_MASK;

    // 获取 ro_or_rw_ext
    uintptr_t ro_or_rw_ext = *((uintptr_t *)(class_rw_t + 0x8));

    // 获取class_ro_t
    // 判断是class_rw_ext_t 还是 class_ro_t
    uintptr_t class_ro_t = ro_or_rw_ext;
    if (ro_or_rw_ext & 0x1) {
        // class_rw_ext_t
        class_ro_t = *((uintptr_t *)ro_or_rw_ext);
    }

    // 获取class_ro_t 中的 baseMethods
    uintptr_t baseMethods = *(uintptr_t *)(class_ro_t + 4/*flags*/ + 4/*instanceStart*/ + 4/*instanceSize*/ + 4/*reserved*/ + 8/*ivarLayout*/ + 8/*name*/);

    struct method_list_t *_method_list_t = (struct method_list_t *)baseMethods;
    *count = _method_list_t->count;
    *methods = _method_list_t->elements;
};

// 输出方法信息
void _printMethods(struct method_t *methods, uint32_t count) {
    struct method_t *node = methods;
    for (int i=0; i<count; i++) {
        printf("=============================\n");
        printf("SEL:%s\n", sel_getName(node->sel));
        printf("types:%s\n",node->types);
        printf("imp:0x%lx\n",(uintptr_t)node->imp);
        node++;
    }
    printf("=============================\n");
}

// 调用
	ObjectA *aObj = [[ObjectA alloc] init];

  BytePtr a_isa = _isaForObject(aObj);
	struct method_t *method = NULL;
  uint32_t count;
  _methodsWithIsa(a_isa, &method, &count);
  _printMethods(method, count);

// 输出如下：
=============================
SEL:funcA
types:v16@0:8
imp:0x1021ddce8
=============================
SEL:funcB:
types:v24@0:8@16
imp:0x1021ddd14
=============================
SEL:b
types:B16@0:8
imp:0x1021ddd78
=============================
