介绍

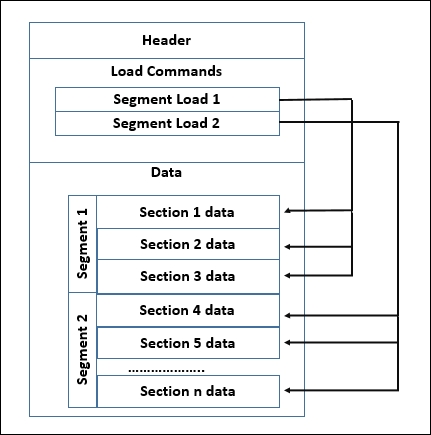

Mach-o文件是MacOS和iOS上的可执行文件。其格式如下图所示：

1

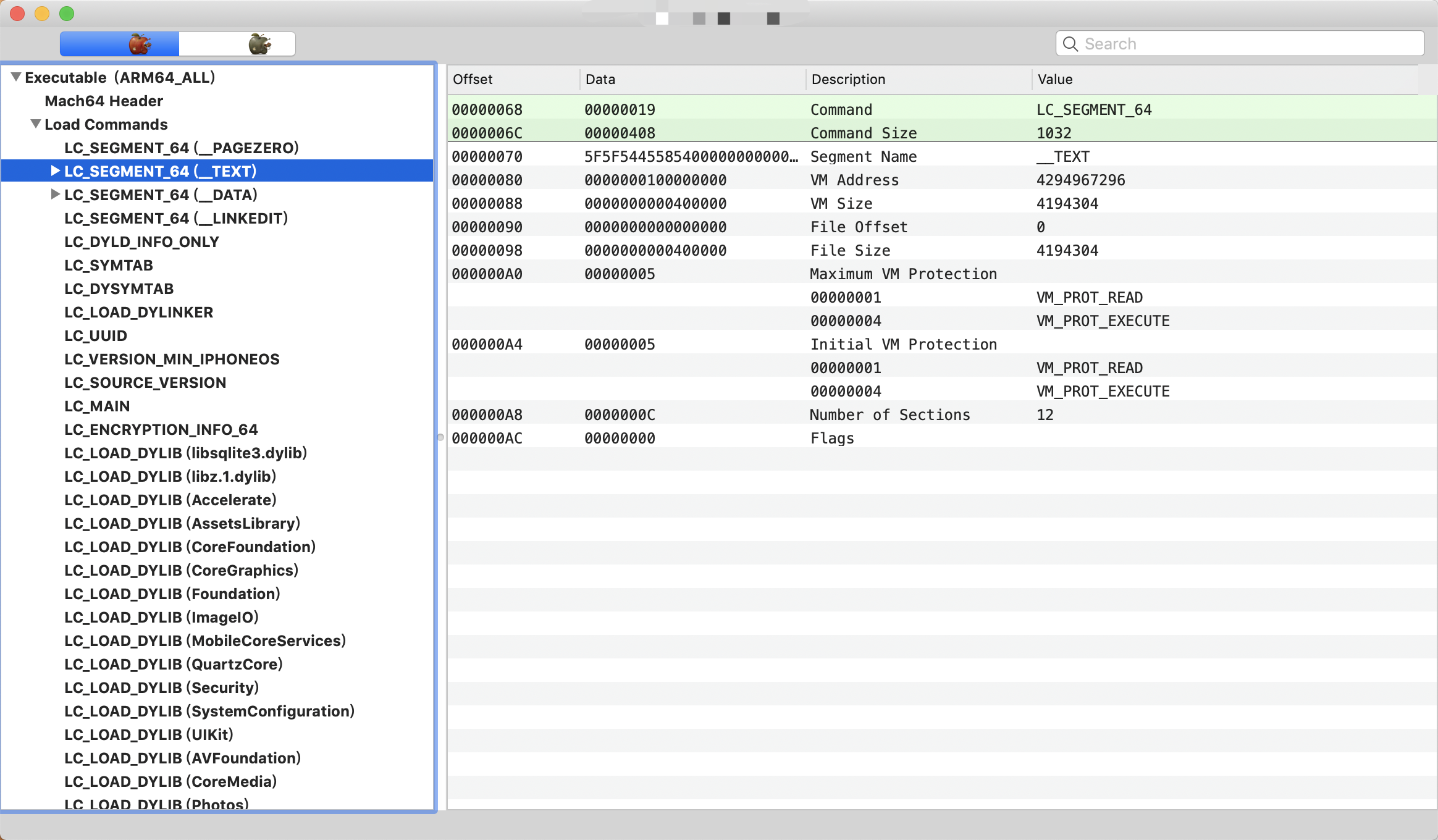

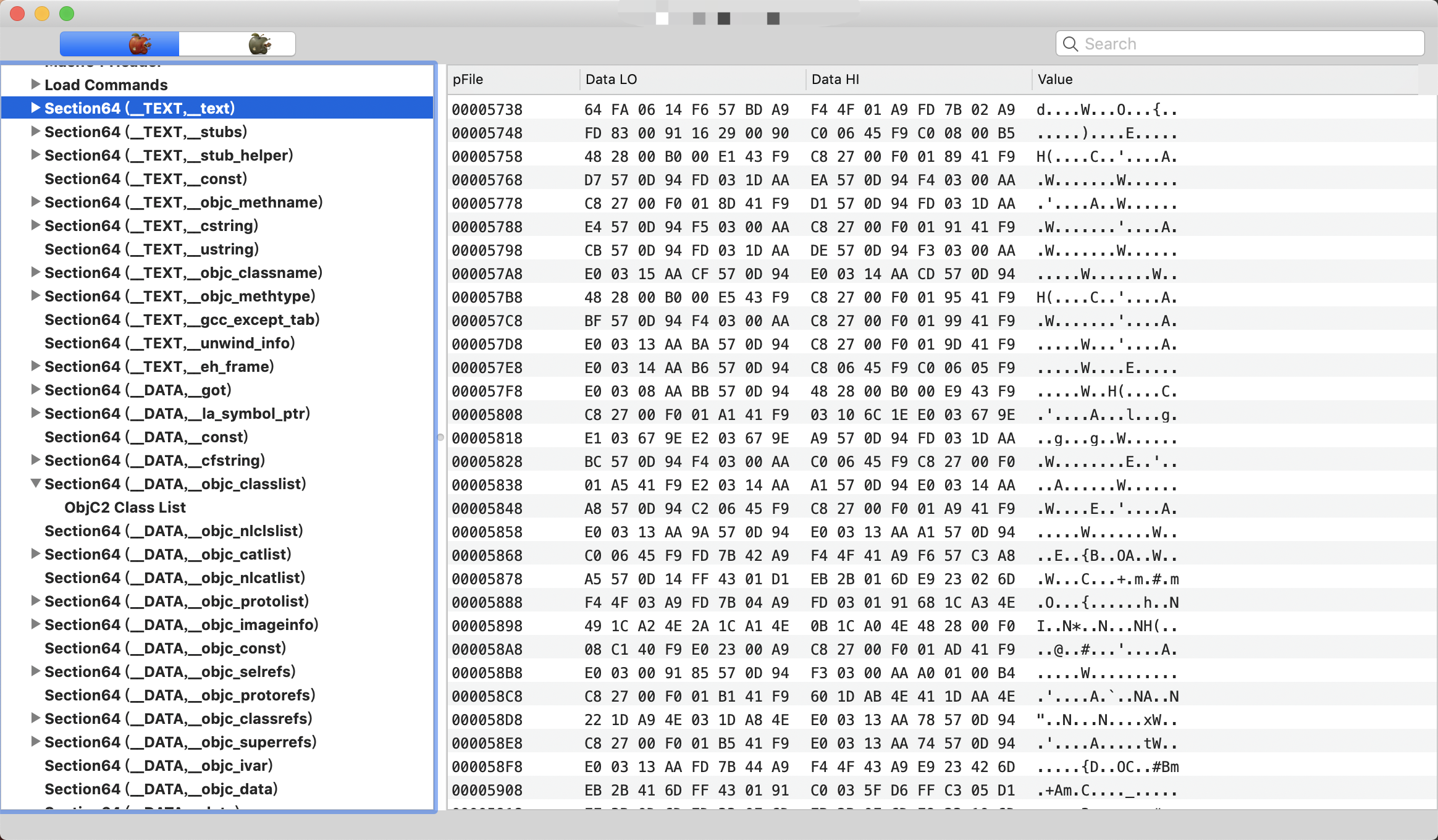

用Mach-o分析工具（MachOView ）查看，其界面如下：

2

结合apple源码来看。

  • 如果是多架构fat文件，文件的头部定义为：
1
2
3
4
5
6
7
8
9
10
11
12
13
14

struct fat_header {
	uint32_t	magic;		/* FAT_MAGIC */
	uint32_t	nfat_arch;	/* number of structs that follow */
};

struct fat_arch {
	cpu_type_t	cputype;	/* cpu specifier (int) */
	cpu_subtype_t	cpusubtype;	/* machine specifier (int) */
	uint32_t	offset;		/* file offset to this object file */
	uint32_t	size;		/* size of this object file */
	uint32_t	align;		/* alignment as a power of 2 */
};

fat_header结构体的nfat_arch字段，标识了fat文件含有几个架构，而每个架构又由fat_arch结构体定义了文件偏移和架构类型，找到文件偏移之后，架构的结构和单架构是一样的，所以解析多架构文件和解析单架构文件，除了头部结构有区别，其他的都一样。

  • 如果是单架构Mach-o文件，其头部定义为：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/*
 * The 32-bit mach header appears at the very beginning of the object file for
 * 32-bit architectures.
 */
struct mach_header {
	uint32_t	magic;		/* mach magic number identifier */
	cpu_type_t	cputype;	/* cpu specifier */
	cpu_subtype_t	cpusubtype;	/* machine specifier */
	uint32_t	filetype;	/* type of file */
	uint32_t	ncmds;		/* number of load commands */
	uint32_t	sizeofcmds;	/* the size of all the load commands */
	uint32_t	flags;		/* flags */
};

/* Constant for the magic field of the mach_header (32-bit architectures) */
#define	MH_MAGIC	0xfeedface	/* the mach magic number */
#define MH_CIGAM	0xcefaedfe	/* NXSwapInt(MH_MAGIC) */

/*
 * The 64-bit mach header appears at the very beginning of object files for
 * 64-bit architectures.
 */
struct mach_header_64 {
	uint32_t	magic;		/* mach magic number identifier */
	cpu_type_t	cputype;	/* cpu specifier */
	cpu_subtype_t	cpusubtype;	/* machine specifier */
	uint32_t	filetype;	/* type of file */
	uint32_t	ncmds;		/* number of load commands */
	uint32_t	sizeofcmds;	/* the size of all the load commands */
	uint32_t	flags;		/* flags */
	uint32_t	reserved;	/* reserved */
};

各个字段的含义，注释都标注的很清楚，就不再赘述。

load_command

在header之下，又有多个load_commad段。header的定义中，给出了Mach-o文件的load_commad数，以及所有段的大小（ncmds/sizeofcmds）。load_command其结构体定义为：

1
2
3
4
struct load_command {
	uint32_t cmd;		/* type of load command */
	uint32_t cmdsize;	/* total size of command in bytes */
};

如果你以为load_command的定义就两个字段那么简单，那你可就错了。每个load_command的cmd字段，标识了该load_command的类型。

以下列出了cmd的所有类型以（代码来自apple source）：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
/*
 * After MacOS X 10.1 when a new load command is added that is required to be
 * understood by the dynamic linker for the image to execute properly the
 * LC_REQ_DYLD bit will be or'ed into the load command constant.  If the dynamic
 * linker sees such a load command it it does not understand will issue a
 * "unknown load command required for execution" error and refuse to use the
 * image.  Other load commands without this bit that are not understood will
 * simply be ignored.
 */
#define LC_REQ_DYLD 0x80000000

/* Constants for the cmd field of all load commands, the type */
#define	LC_SEGMENT	0x1	/* segment of this file to be mapped */
#define	LC_SYMTAB	0x2	/* link-edit stab symbol table info */
#define	LC_SYMSEG	0x3	/* link-edit gdb symbol table info (obsolete) */
#define	LC_THREAD	0x4	/* thread */
#define	LC_UNIXTHREAD	0x5	/* unix thread (includes a stack) */
#define	LC_LOADFVMLIB	0x6	/* load a specified fixed VM shared library */
#define	LC_IDFVMLIB	0x7	/* fixed VM shared library identification */
#define	LC_IDENT	0x8	/* object identification info (obsolete) */
#define LC_FVMFILE	0x9	/* fixed VM file inclusion (internal use) */
#define LC_PREPAGE      0xa     /* prepage command (internal use) */
#define	LC_DYSYMTAB	0xb	/* dynamic link-edit symbol table info */
#define	LC_LOAD_DYLIB	0xc	/* load a dynamically linked shared library */
#define	LC_ID_DYLIB	0xd	/* dynamically linked shared lib ident */
#define LC_LOAD_DYLINKER 0xe	/* load a dynamic linker */
#define LC_ID_DYLINKER	0xf	/* dynamic linker identification */
#define	LC_PREBOUND_DYLIB 0x10	/* modules prebound for a dynamically */
				/*  linked shared library */
#define	LC_ROUTINES	0x11	/* image routines */
#define	LC_SUB_FRAMEWORK 0x12	/* sub framework */
#define	LC_SUB_UMBRELLA 0x13	/* sub umbrella */
#define	LC_SUB_CLIENT	0x14	/* sub client */
#define	LC_SUB_LIBRARY  0x15	/* sub library */
#define	LC_TWOLEVEL_HINTS 0x16	/* two-level namespace lookup hints */
#define	LC_PREBIND_CKSUM  0x17	/* prebind checksum */

/*
 * load a dynamically linked shared library that is allowed to be missing
 * (all symbols are weak imported).
 */
#define	LC_LOAD_WEAK_DYLIB (0x18 | LC_REQ_DYLD)

#define	LC_SEGMENT_64	0x19	/* 64-bit segment of this file to be
				   mapped */
#define	LC_ROUTINES_64	0x1a	/* 64-bit image routines */
#define LC_UUID		0x1b	/* the uuid */
#define LC_RPATH       (0x1c | LC_REQ_DYLD)    /* runpath additions */
#define LC_CODE_SIGNATURE 0x1d	/* local of code signature */
#define LC_SEGMENT_SPLIT_INFO 0x1e /* local of info to split segments */
#define LC_REEXPORT_DYLIB (0x1f | LC_REQ_DYLD) /* load and re-export dylib */
#define	LC_LAZY_LOAD_DYLIB 0x20	/* delay load of dylib until first use */
#define	LC_ENCRYPTION_INFO 0x21	/* encrypted segment information */
#define	LC_DYLD_INFO 	0x22	/* compressed dyld information */
#define	LC_DYLD_INFO_ONLY (0x22|LC_REQ_DYLD)	/* compressed dyld information only */
#define	LC_LOAD_UPWARD_DYLIB (0x23 | LC_REQ_DYLD) /* load upward dylib */
#define LC_VERSION_MIN_MACOSX 0x24   /* build for MacOSX min OS version */
#define LC_VERSION_MIN_IPHONEOS 0x25 /* build for iPhoneOS min OS version */
#define LC_FUNCTION_STARTS 0x26 /* compressed table of function start addresses */
#define LC_DYLD_ENVIRONMENT 0x27 /* string for dyld to treat
				    like environment variable */
#define LC_MAIN (0x28|LC_REQ_DYLD) /* replacement for LC_UNIXTHREAD */
#define LC_DATA_IN_CODE 0x29 /* table of non-instructions in __text */
#define LC_SOURCE_VERSION 0x2A /* source version used to build binary */
#define LC_DYLIB_CODE_SIGN_DRS 0x2B /* Code signing DRs copied from linked dylibs */

所有段的定义以及含义，注释的都比较清楚。这里，我们主要关注LC_SEGMENT_64（LC_SEGMENT）段。

定义为该类型的段有：

1
2
3
4
5
6
7
8
9
10
11
#define    SEG_PAGEZERO    "__PAGEZERO"	/* the pagezero segment which has no */
					/* protections and catches NULL */
					/* references for MH_EXECUTE files */
#define    SEG_TEXT    "__TEXT"	/* the tradition UNIX text segment */
#define    SEG_DATA    "__DATA"	/* the tradition UNIX data segment */
#define    SEG_OBJC    "__OBJC"	/* objective-C runtime segment */
#define    SEG_LINKEDIT    "__LINKEDIT" /* the segment containing all structs */
					/* created and maintained by the link */
					/* editor.  Created with -seglinkedit */
					/* option to ld(1) for MH_EXECUTE and */
					/* FVMLIB file types only */
section

其中，SEG_TEXT以及SEG_DATA段中，又含有多个Section：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
struct section { /* for 32-bit architectures */
	char		sectname[16];	/* name of this section */
	char		segname[16];	/* segment this section goes in */
	uint32_t	addr;		/* memory address of this section */
	uint32_t	size;		/* size in bytes of this section */
	uint32_t	offset;		/* file offset of this section */
	uint32_t	align;		/* section alignment (power of 2) */
	uint32_t	reloff;		/* file offset of relocation entries */
	uint32_t	nreloc;		/* number of relocation entries */
	uint32_t	flags;		/* flags (section type and attributes)*/
	uint32_t	reserved1;	/* reserved (for offset or index) */
	uint32_t	reserved2;	/* reserved (for count or sizeof) */
};

struct section_64 { /* for 64-bit architectures */
	char		sectname[16];	/* name of this section */
	char		segname[16];	/* segment this section goes in */
	uint64_t	addr;		/* memory address of this section */
	uint64_t	size;		/* size in bytes of this section */
	uint32_t	offset;		/* file offset of this section */
	uint32_t	align;		/* section alignment (power of 2) */
	uint32_t	reloff;		/* file offset of relocation entries */
	uint32_t	nreloc;		/* number of relocation entries */
	uint32_t	flags;		/* flags (section type and attributes)*/
	uint32_t	reserved1;	/* reserved (for offset or index) */
	uint32_t	reserved2;	/* reserved (for count or sizeof) */
	uint32_t	reserved3;	/* reserved */
};

下面介绍几个常见的section:

1
2
3
4
5
6
7
__TEXT,__text:	代码区
__TEXT,__cstring:	代码中定义的C字符串存放在这个节
__TEXT,__stubs:	装载符号表的节，一般称之为桩
__TEXT,__objc_classname:	OC类名
__TEXT,__objc_methname:	OC方法名
__DATA,__la_symbol_ptr:	懒加载符号表
__DATA,__objc_classlist:	OC类列表

代码分析Mach-o文件（class-dump的实现原理探析）

从上面的分析过程，可以看出，多架构文件只是含有多个架构文件的fat文件。所以这里，直接用一个单架构的Mach-o文件解析。

MachOView + 010 Editor分析
用MachOView大致浏览一下文件

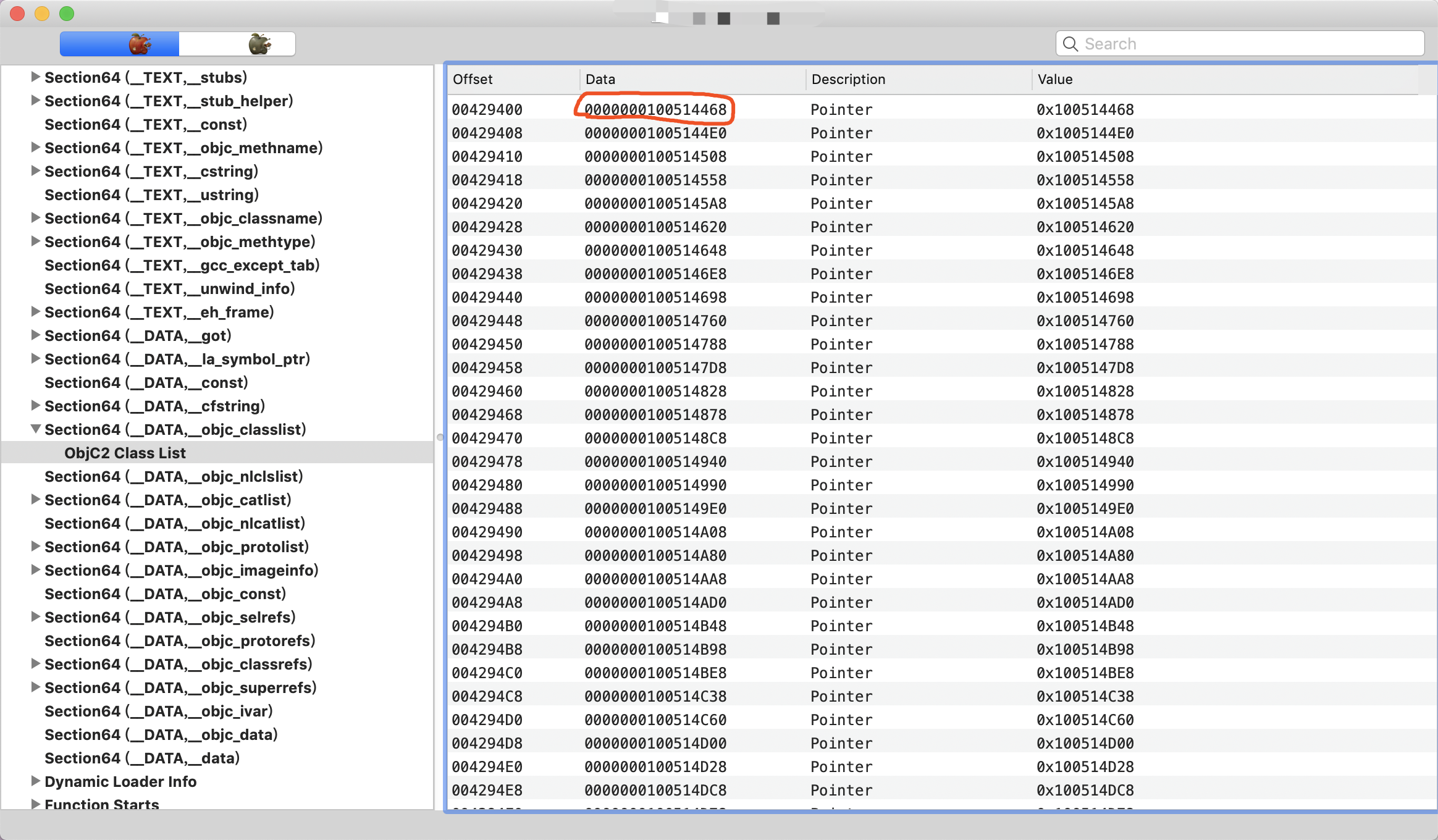

找到__DATA,__objc_classlist节

4

这里保存了所有类的指针，我们取第一个去查看：

1
uintptr_t cls_ptr = 0x0000000100514468;
获取指针所对应的文件偏移

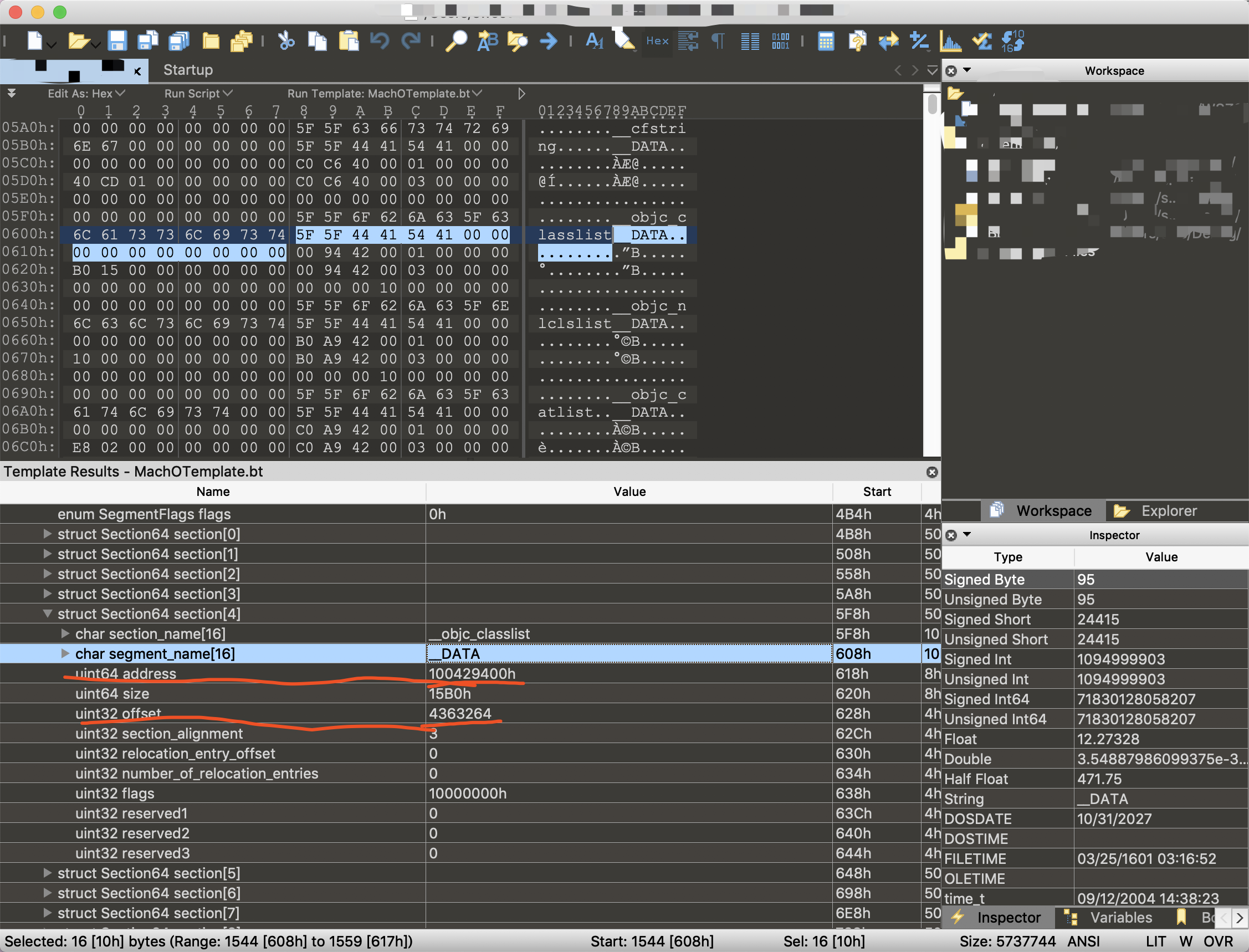

首先用010 Editor查看当前__DATA,__objc_classlist的起始地址和文件偏移

5

1
2
uintptr_t address = 0x100429400;
uint32 offset = 4363264;

一般地，虚拟地址—》文件偏移的公式为：文件偏移=虚拟地址-当前section的起始地址+当前section的文件偏移。

1
uint32 cls_offset = 0x0000000100514468-0x100429400+4363264 = 0x514468;

经过计算，cls_ptr指针指向的就是文件的这个位置。

在class-dump的源码中，对cls_ptr指针指向的位置进行了如下定义：

1
2
3
4
5
6
7
8
9
10
struct cd_objc2_class {
    uint64_t isa;
    uint64_t superclass;
    uint64_t cache;
    uint64_t vtable;
    uint64_t data; // points to class_ro_t
    uint64_t reserved1;
    uint64_t reserved2;
    uint64_t reserved3;
};

意味着0x514468处，存储的是cd_objc2_class结构体的数据。

而这个结构体中的data，即为存储class数据的指针。

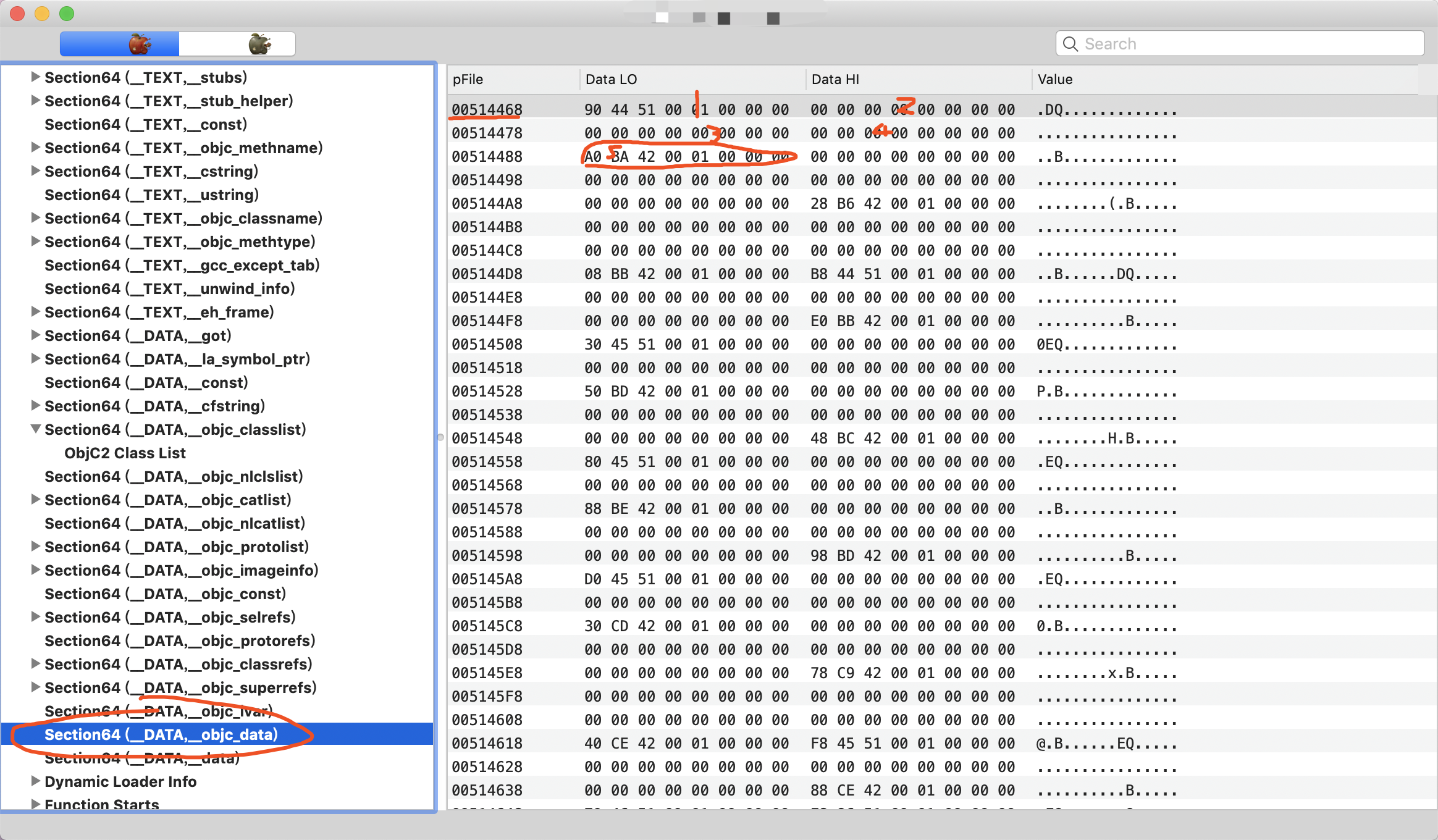

查看cd_objc2_class数据

6

用MachOView查看文件偏移为0x514468的地方，可以看到，这个地址是__DATA,__objc_data的首地址，其中，0x00514488处，即为data指针的值。

1
uintptr_t data = 0x010042baa0;
获取data指针的文件偏移

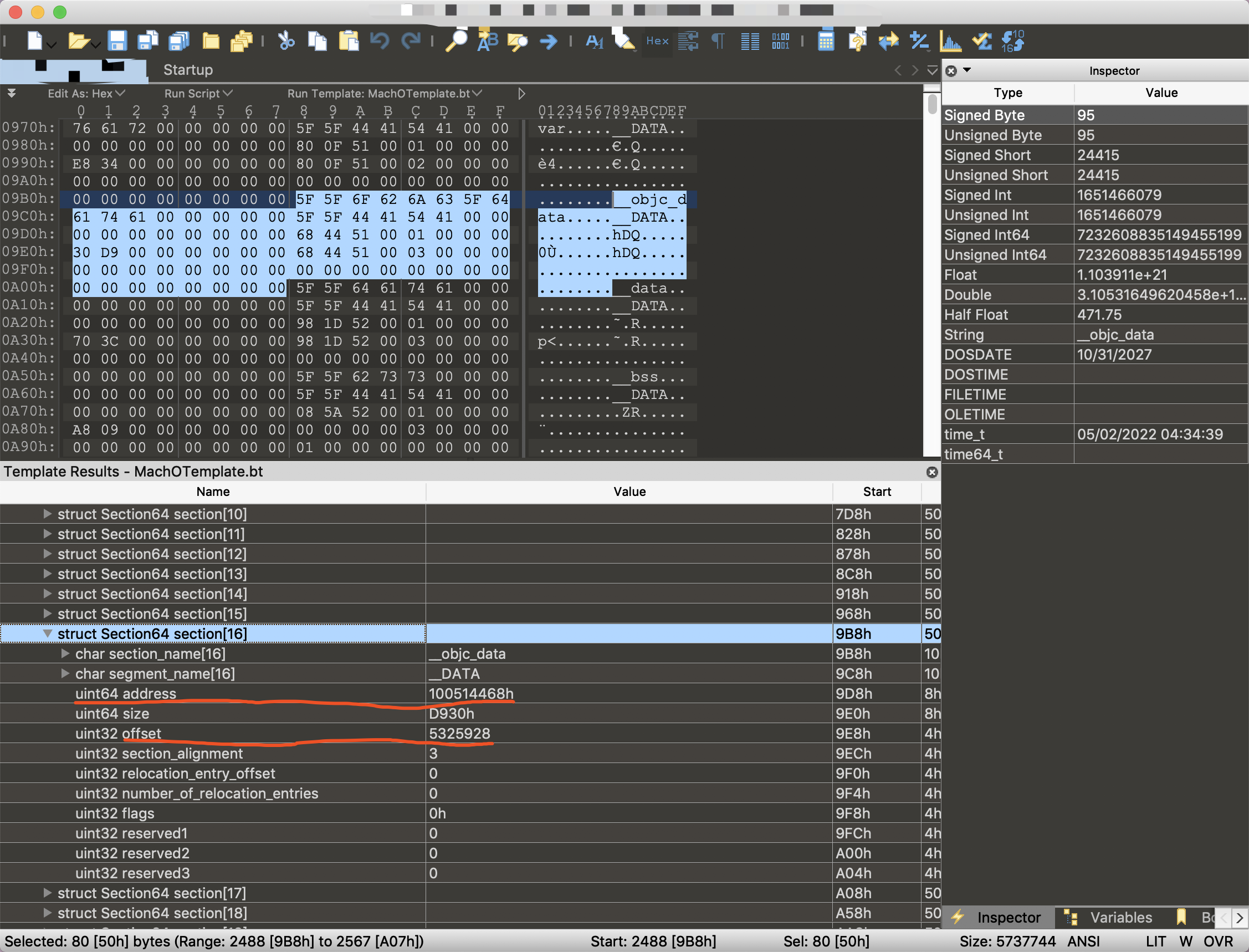

和上面的一样，用010 Editor查看基地址和文件偏移

7

1
2
uintptr_t address = 0x100514468;
uint32 offset = 5325928;

根据之前说的公式，可以算出:

1
uint32 data_offset = 0x010042baa0-0x100514468+5325928 = 0x0x42BAA0;

在cd_objc2_class的定义中已经告诉了我们，data指针指向的是class_ro_t，所以0x0x42BAA0存储的应该是class_ro_t结构体的数据。

class_ro_t的定义：

1
2
3
4
5
6
7
8
9
10
11
12
13
struct cd_objc2_class_ro_t {
    uint32_t flags;
    uint32_t instanceStart;
    uint32_t instanceSize;
    uint32_t reserved; // *** this field does not exist in the 32-bit version ***
    uint64_t ivarLayout;
    uint64_t name;
    uint64_t baseMethods;
    uint64_t baseProtocols;
    uint64_t ivars;
    uint64_t weakIvarLayout;
    uint64_t baseProperties;
};

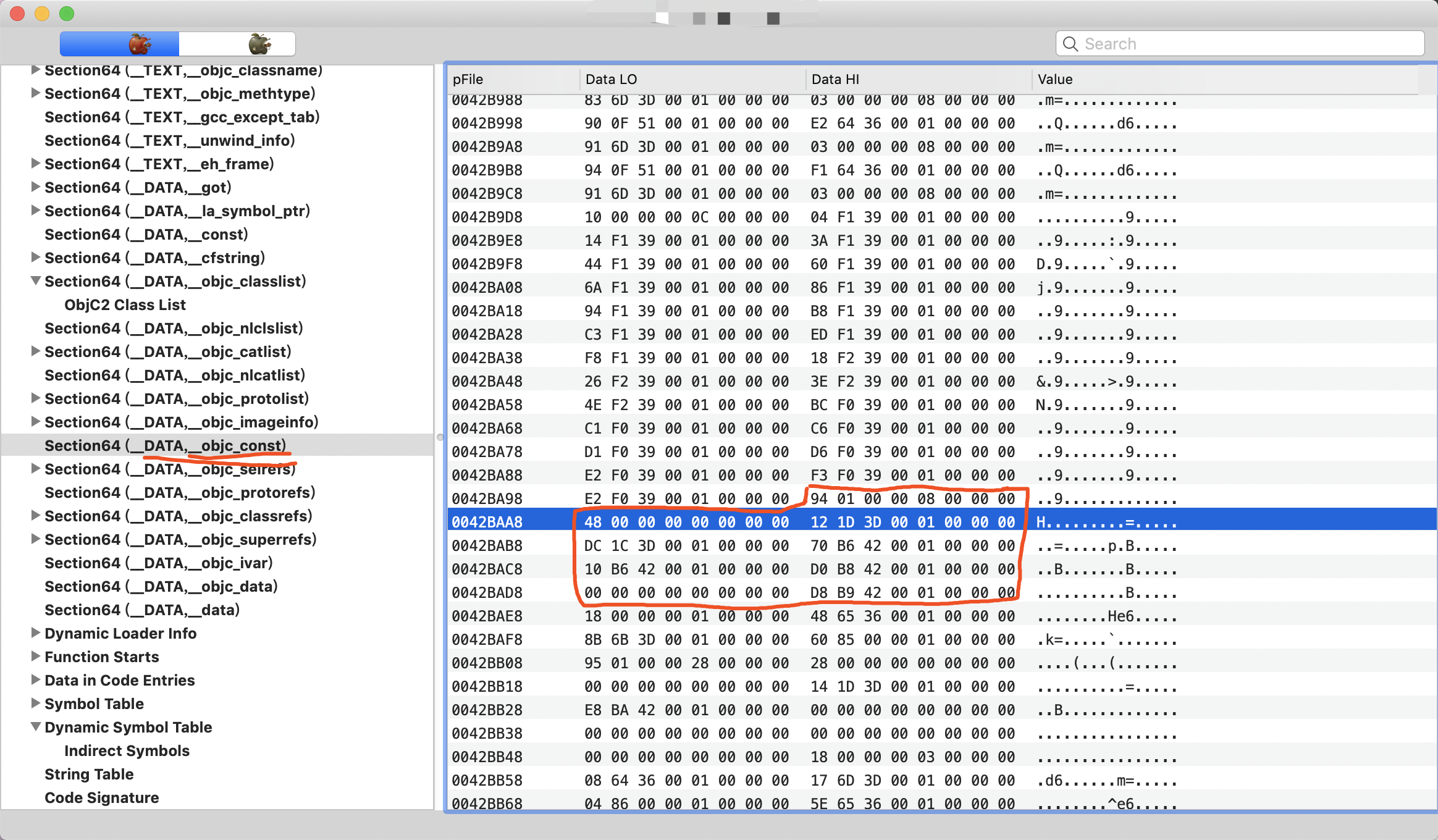

查看cd_objc2_class_ro_t数据

8

根据结构体的定义：

1
2
name = 0x01003d1cdc;
baseMethods = 0x010042b670;

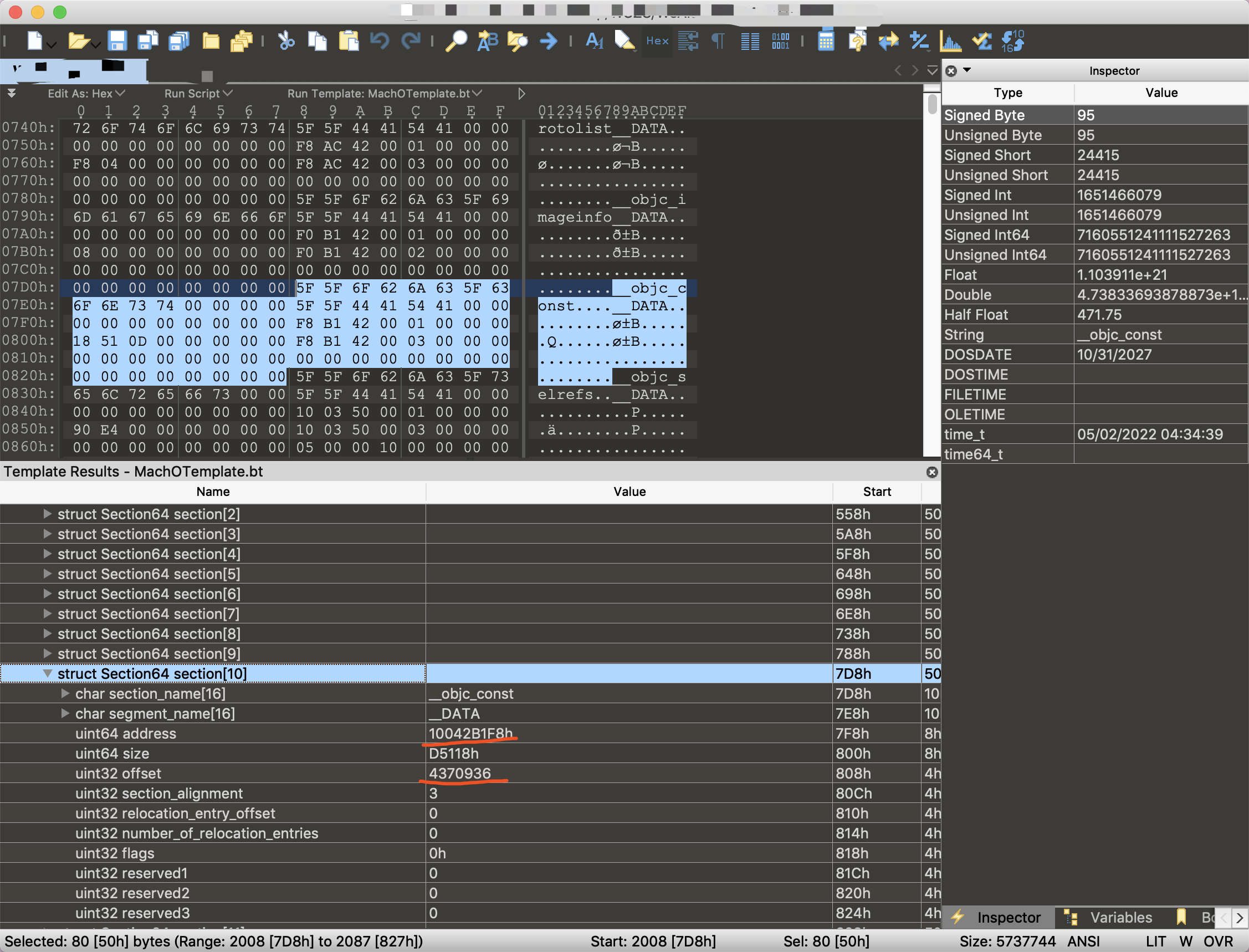

用同样的方法，找到基地址和文件偏移

9

1
2
uintptr_t address = 0x10042B1F8;
uint32 offset = 4370936;

计算name和baseMethods的文件偏移

1
2
name_offset = 0x01003d1cdc-0x10042B1F8+4370936 = 0x3D1CDC;
baseMethods_offset = 0x010042b670-0x10042B1F8+4370936 = 0x42B670;

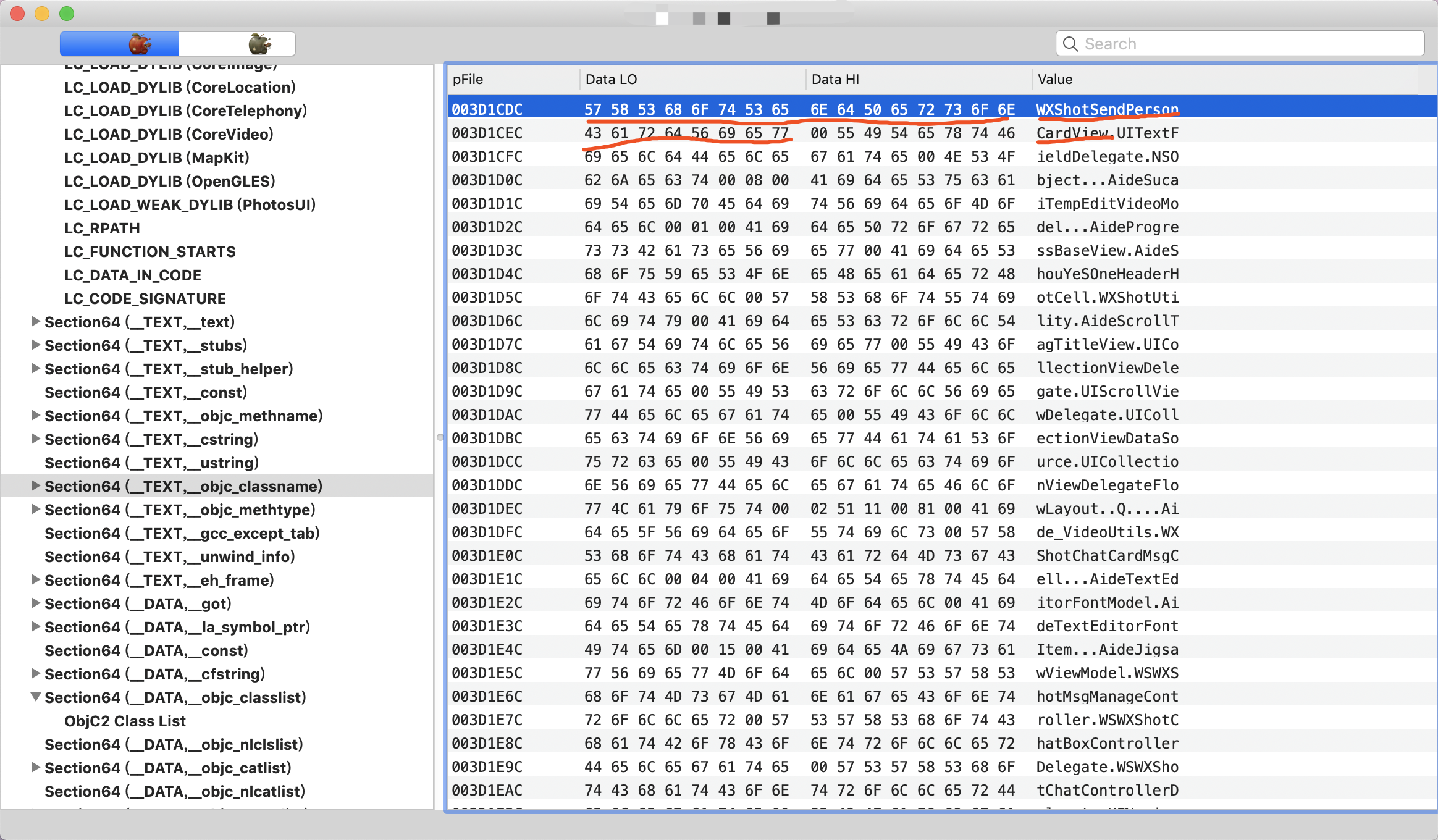

查看name

10

name = “WXShotSendPersonCardView”;

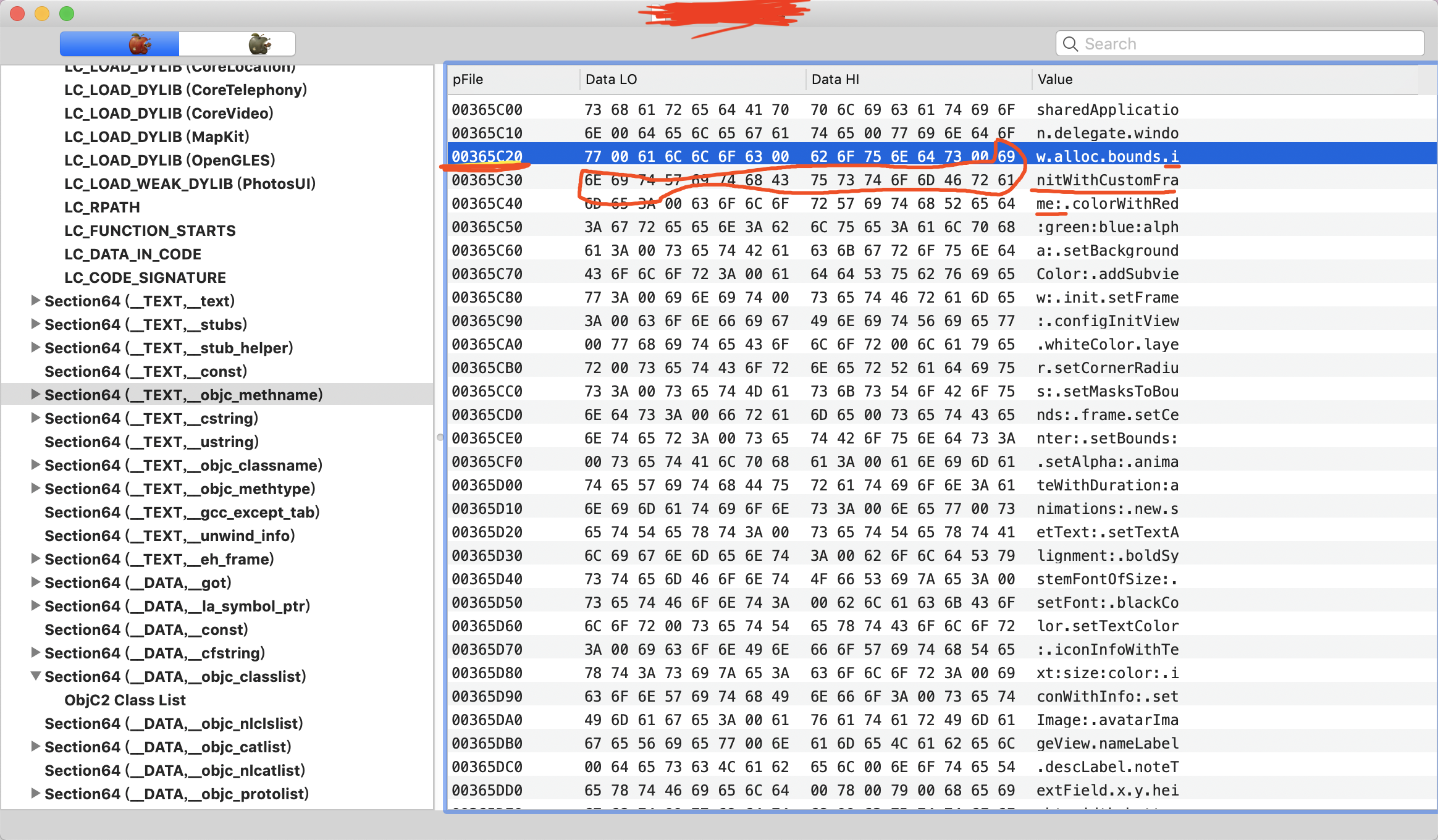

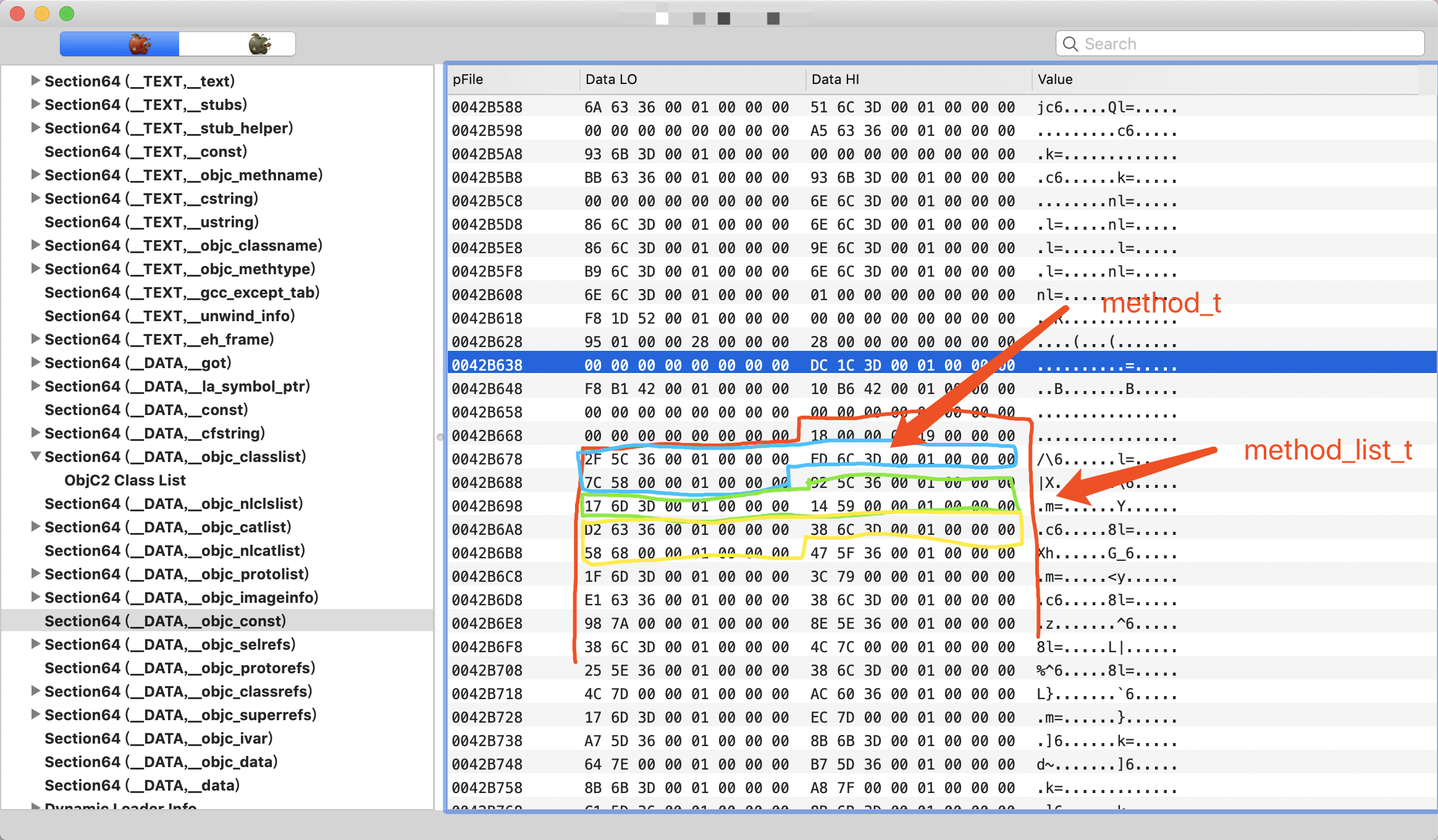

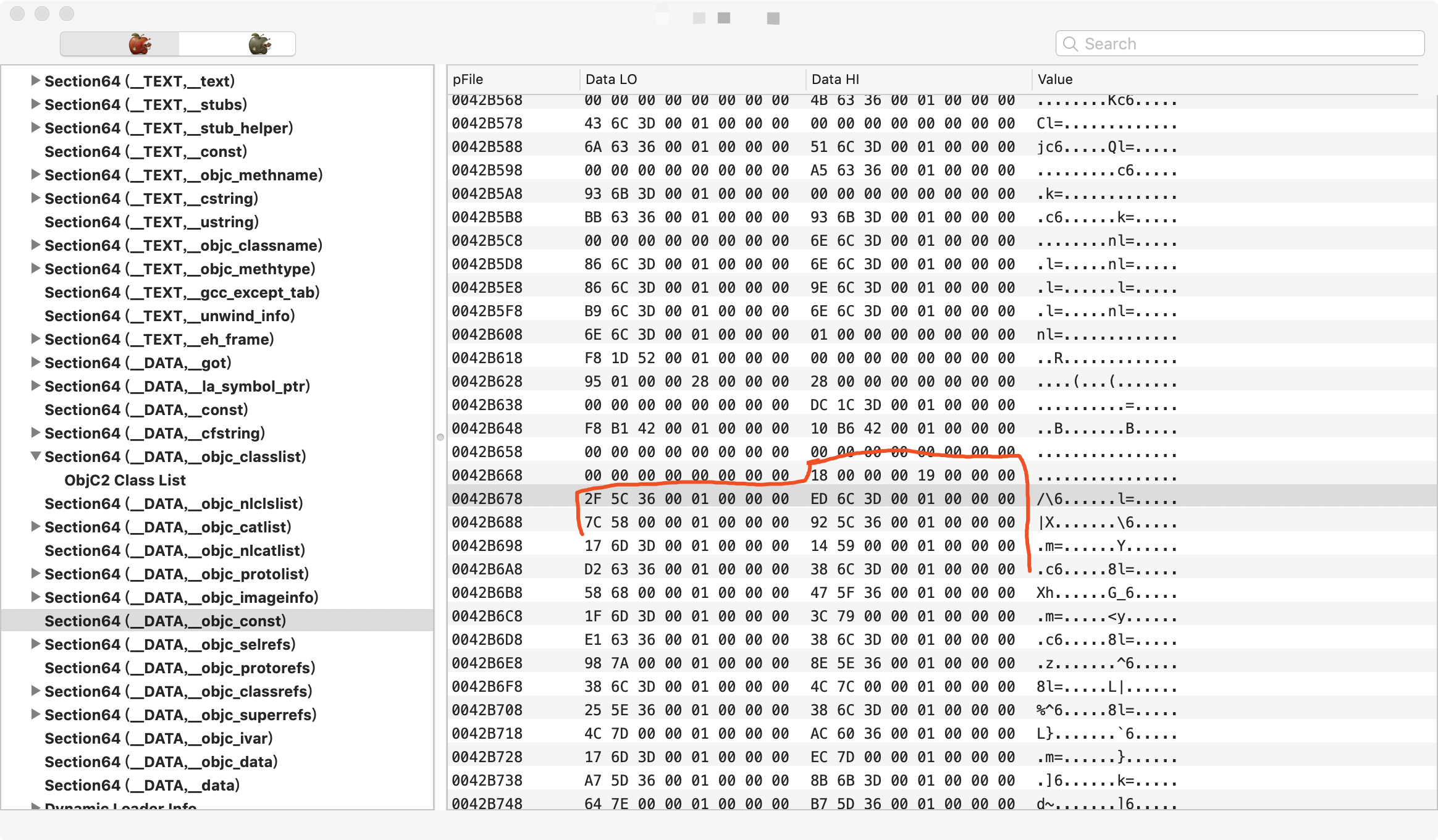

查看baseMethods

11

这个位置存储的就是类q的方法。

其定义为：

1
2
3
4
5
6
7
8
9
10
struct method_t {
		char *sel;
  	char *type;
  	void *imp;
}
struct method_list_t {
    uint32_t entsizeAndFlags;
    uint32_t count;
    struct method_t first[1];
}

method_list_t的前八个字节存储的是method_t的大小和method_t的个数。

method_t的存储方式为：

12

我们从0x42B670+0x8处，往下取三个指针：

1
2
3
sel = 0x0100365c2f;
type = 0x01003d6ced;
imp = 0x010000587c;

用上述公式计算出文件偏移：

1
2
3
sel_offset=0x0100365c2f-0x10042B1F8+4370936 = 0x365C2F;
type_offset=0x01003d6ced-0x10042B1F8+4370936 = 0x3D6CED;
imp_offset=0x010000587c-0x10042B1F8+4370936 = 0x587C;
  • 查看sel

13

1
sel = initWithCustomFrame:

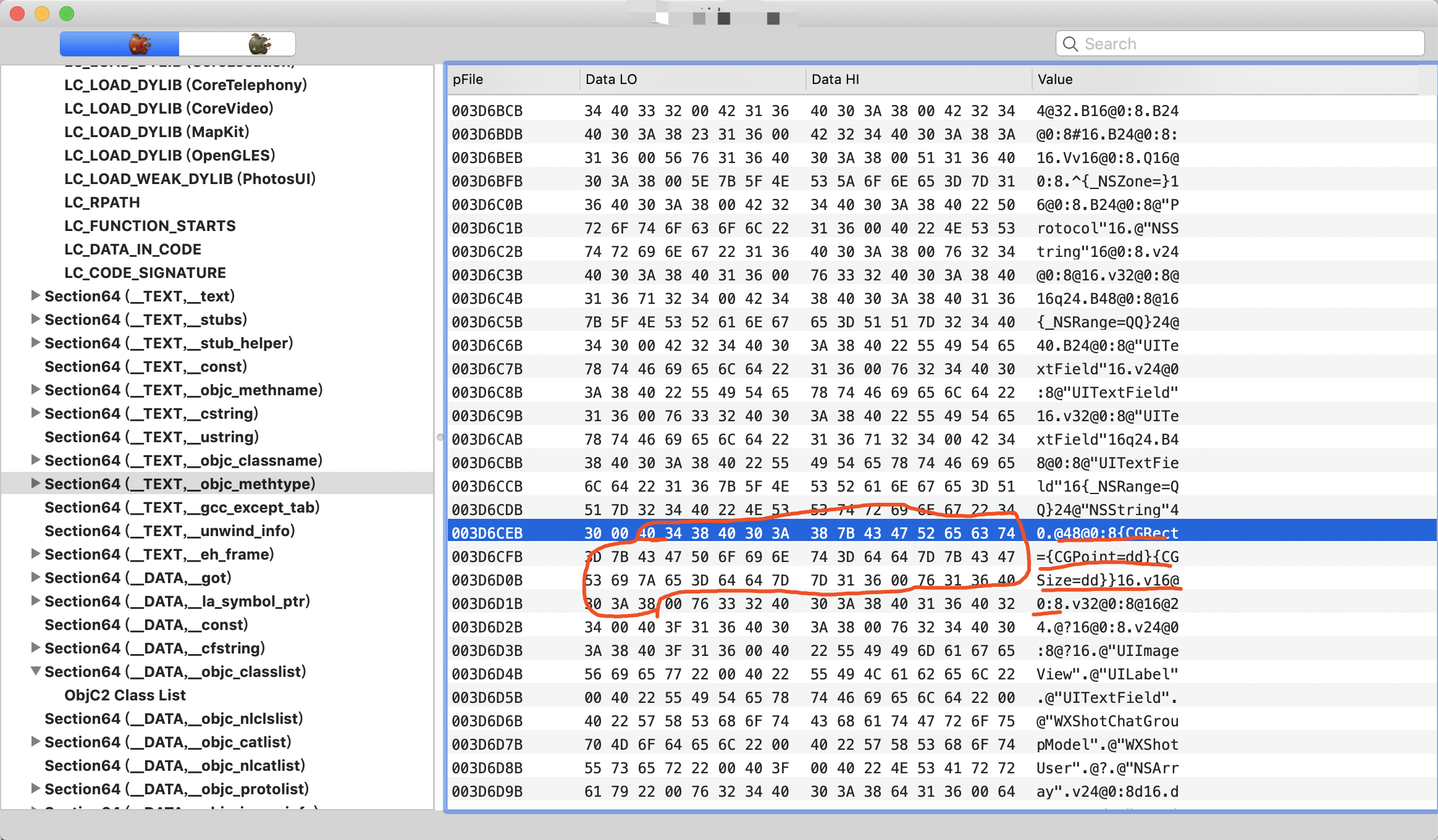

  • 查看type

14

1
type = "@48@0:8{CGRect={CGPoint=dd}{CGSize=dd}}16";

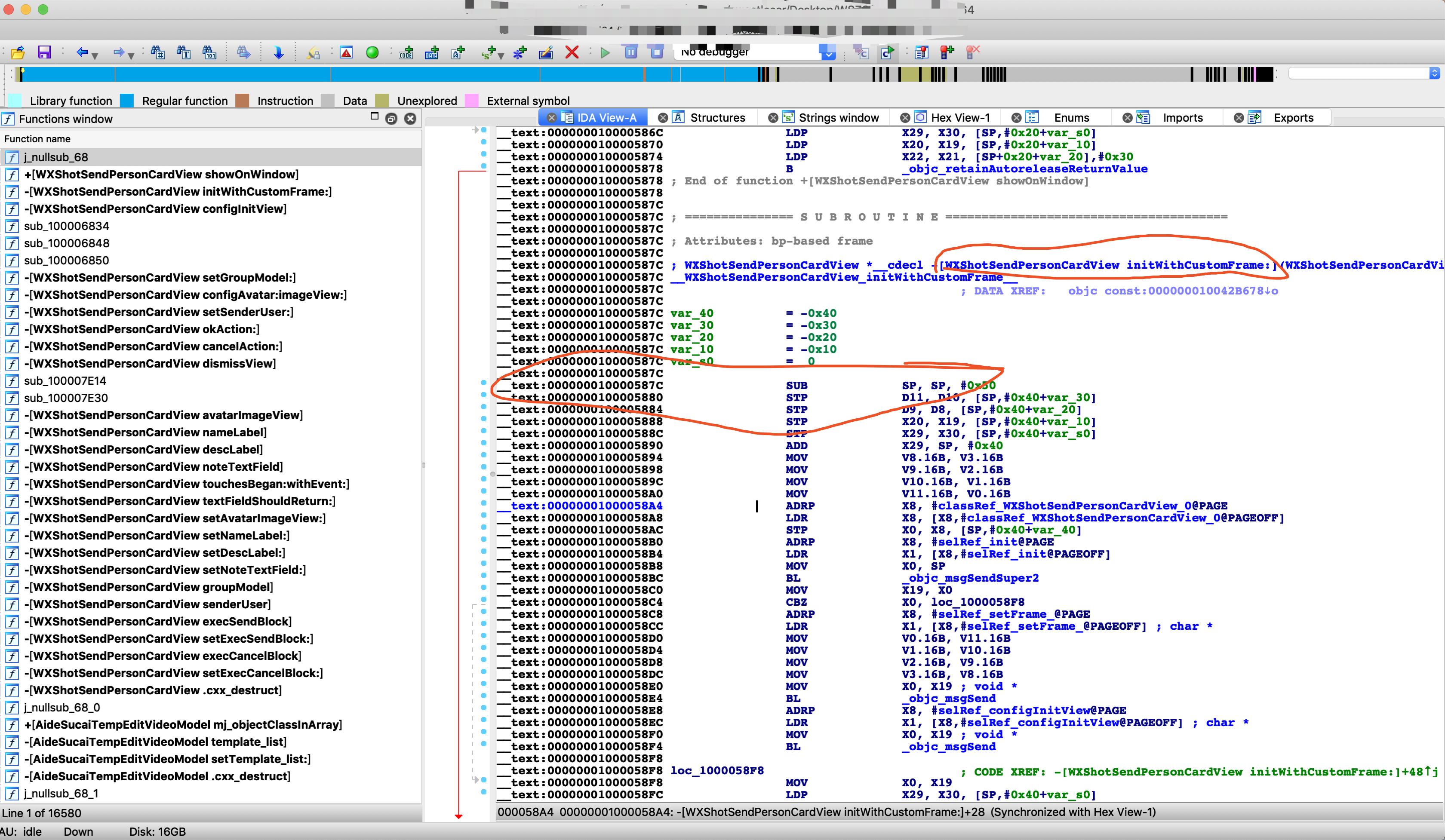

  • 查看imp

imp指向的是代码段，所以这里直接在ida上查看

15

可以看出，该偏移正好对上[WXShotSendPersonCardView initWithCustomFrame:]的实现部分。
